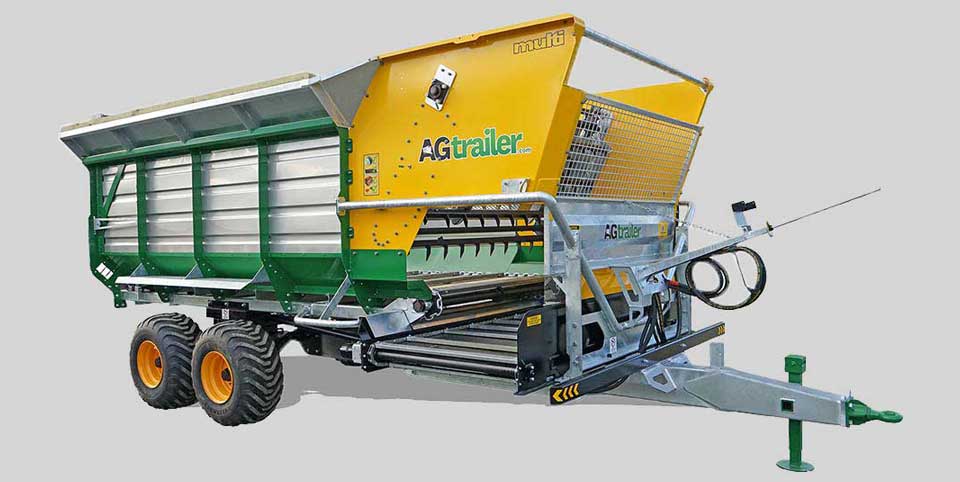

14 CUBIC METRE
Description
Agtrailer Multifeed Wagons are built tough for South Island conditions, which require larger loads, all-year round feeding and denser, more diverse feed types. The wagons are capable of handling all feed types (e.g. silage, baleage, hay, straw and veggie mix). The Agtrailer Multifeed Wagons are all fully automatic allowing the operator to focus on the terrain ahead.
The 14 cubic metre comes standard with a back gate ladder and a gearbox floor and elevator drive system. The wagon also has the capability to be upgraded to a standard 16m3 with bolt on side panel extensions. The standard wheels & tyres for the wagon are 400/60-15.5 W&T and can be upgraded to a 400/60-15.5-18 Ply Semi Traction Forestry Tyre. See below for further additional accesories.
Features
Fully Automatic
The floor and elevator drive systems operate in tandem with a hydraulic sensor control unit allowing the operator to focus on driving.
Multi-Feeder
The heavy-duty design of the teaser bars, chains and drive system enable the wagon to handle denser more diverse feed types allowing all-year round feeding.
Upgradable
The 12 & 14m3 wagons can be upgraded to a larger capacity with bolt on side panel extensions. This allows the opportunity to upgrade wagon capacity at a later stage.
Anti-Corrosive
Steel parts are power blasted, epoxy primed and coated with two pack urethane for corrosion resistance. Chassis parts are hot-dipped galvanised while the side panels are high grade stainless steel.
Manoeuvrable
All models are with an asymmetric, independently oscillating tandem walking beam axle. This improves manoeuvrability and reduces tyre wear on paved surfaces while maintaining good floatation suspension for rough surfaces.
Remote Greasing
No need to climb under the wagon as all greasing points are accessible from the sides of the machine. This comes standard for all machine models. An Automatic Greasing System is available as an optional accessory upgrade.
Bolt-On Parts
The shaft, chains, bars and stub axles are all easily removed ensuring minimum down time when servicing is required.
Road Compliant
All models of the Multifeed Wagon are less than 3.1m wide to eliminate piloting requirements. Hazard panels, LED rear lighting and hydraulic brakes are available as an additional accessory.
2-Chain System
Our studies show a '2-chain' floor system rather than a '4-chain' is found to be stronger and more durable with 13mm high tensile chains rather than 10mm chains.
Specifications
| Bin Capacity | 14 cubic metre |
| Machine Axle | Tandem |
| Stub Axles | 70 sq stub |
| Standard Tyres | 400/60-15.5 W&T |
| Custom Load Cells | 6x5000kg |
| Ladder | Standard |
| Floor & Elevator Drive | Gearbox |
| Swivel Tow Eye | Optional |
| Side Conveyor Width | 1200mm |
| Tare | ~4060 kg |
| Max Load Weight | 8400 kg |
| Overall Length | 7.1m |
| Overall Width | 2.9m |
| Loading Height * | 2.6m |
| Bin Length | 4.2m |
| Bin Width | 2.2m |
| Bin Height | 1.5m |
* With standard W&T
